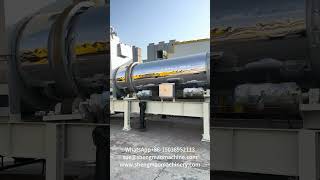

The MDHB-40 is a fully integrated mobile continuous asphalt mixing plant designed for small to medium road construction projects. It is especially suitable for rural roads, municipal maintenance works, and developing markets where flexibility and low investment cost are essential.
The entire plant is mounted on a single mobile chassis (23 meters length, dual-axle, eight-wheel configuration), allowing easy transportation without the need for complex foundation work.
----------------------------------------------------------------------------
? Main Technical Specifications
● Production Capacity: 40 TPH
● Drying & Mixing Drum: Φ1200 × 5,000 mm
● Drum Motor Power: 15 kW
● Burner: Italy Riello diesel burner
● Heat Conduction Oil System: 200,000 kcal
----------------------------------------------------------------------------
? Cold Aggregate Feeding System
● 2 × 3m³ storage bins
● B500 discharge belts
● Max feeding capacity: 100 t/h
● Vibration motor: 0.25 kW
● Feeder motor: 1.5 kW
● Collecting belt motor: 4 kW
----------------------------------------------------------------------------
? Bitumen Supply System
● 20T Bitumen Tank
● 2m³ Bitumen Discharging Tank
● Bitumen Pump: 5.5 kW
----------------------------------------------------------------------------
? Dust Collection System
● Primary gravity dust collector
● Baghouse filter (180 m² dust removal area)
● Induced draft fan: 22 kW
----------------------------------------------------------------------------
? Finished Asphalt Handling
● Scraper conveyor: 5.5 kW
● 3m³ storage bin
● Discharge height: 2.8 m
● Equipped with temperature sensor and level indicator
----------------------------------------------------------------------------
? Electrical Control System
● CHINT & Siemens components
● Burner control system
● Aggregate temperature control
● Mixing control system
● Air-conditioned control room (2200 × 2200 × 2500 mm)
----------------------------------------------------------------------------
? Advantages
✔ Compact and cost-effective solution
✔ Ideal for small road projects
✔ Fully mobile design
✔ No complex civil foundation required
✔ Easy installation and fast commissioning
✔ Reliable burner (Riello – Italy)
✔ Stable dust control system
----------------------------------------------------------------------------
Factory direct supply. Contact us for quotation
Delivery time available upon request.
Technical support and overseas installation service available.
